LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode

LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode
LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode

Großes Bild :  LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode

Produktdetails:
Herkunftsort: Guangdong, China
Markenname: LIYI
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt

LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode

Beschreibung
Leistung: 75W Stromspannung: 220 V, 380 V, 240 V, 110 V.
Gewicht: 32 kg Auflösungsverhältnis: 0,1um
Probenahmeschritt: 0 ~ 1000 mm Injektionsgeschwindigkeit: 0,1 ~ 99,9 mm/s
Maschinengröße: 461 mm * 334 mm * 357 mm (L * B * H) Messbereich: 0-2mm
Messgeschwindigkeit: 10times/min Messdruck: 17,5 ± 1 kPa (Film); 100 ± 1 kPa (Papier)
Kontaktgebiet: 50 mm² (Folie), 200 mm² (Papier) Stromversorgung: 220 V 50 Hz
Messmethode: Mechanischer Kontakt Anzeigeart: LCD
Schnittstelle: Standard-USB
Hervorheben:

High Resolution Film Thickness Tester

,

Mechanical Contact Measurement Film Thickness Tester

,

Automatic Measurement Mode Film Thickness Tester

LY-8312 Film Measurement Plastic Thickness Tester of Paper
Product Description
The LY-8312 thickness gauge employs mechanical contact measurement, ensuring strict compliance with industry standards for accurate and standardized testing. This instrument is designed for precise thickness measurement of various materials including plastic film, sheet, diaphragm, paper, foil, and silicon.
Key Features
  • Contact area and measuring pressure designed to meet exact standards with support for non-standard customization
  • Automated measuring head movement eliminates human-induced system errors
  • Dual measurement modes: automatic and manual for flexible operation
  • Programmable sample injection with adjustable parameters (step, points, speed)
  • Real-time display of analysis data including max, min, average, and standard deviation
  • Includes standard gauge block for system calibration to ensure accuracy
  • Comprehensive functionality including real-time data display, automatic statistics, and printing
  • Microcomputer-controlled system with LCD display, menu interface, and PVC operation panel
  • Standard USB interface for computer connectivity and data exchange
Technical Specifications
Parameter Specification
Measuring range 0-2mm (Other ranges can be customized)
Resolution ratio 0.1μm
Measuring speed 10times/min (adjustable)
Measuring pressure 17.5±1kPa (film); 100±1kPa (paper)
Contact area 50mm² (film), 200mm² (paper) - Film and paper are optional
Sampling step moment 0 ~ 1000 mm
Injection speed 0.1 ~ 99.9 mm/s
Machine size 461mm × 334mm × 357mm (L×W×H)
Weight 32Kg

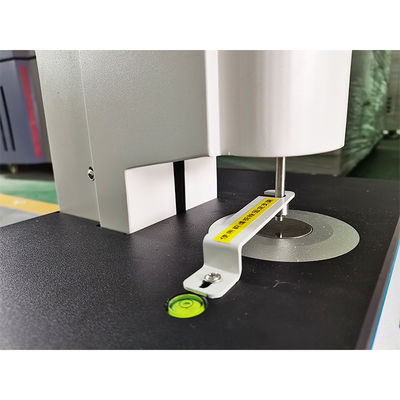

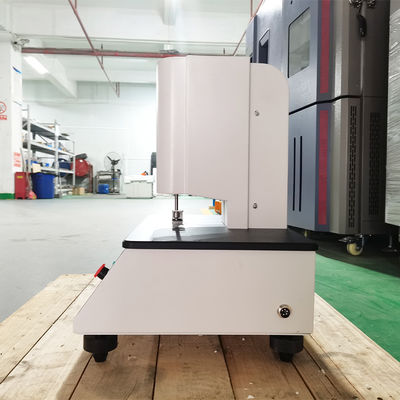

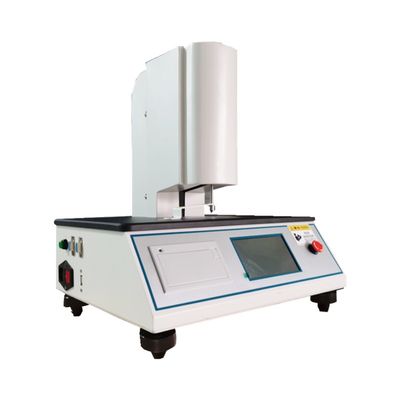

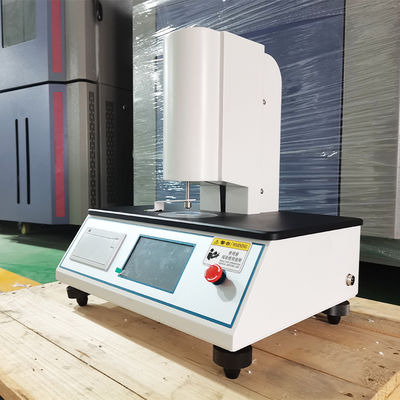

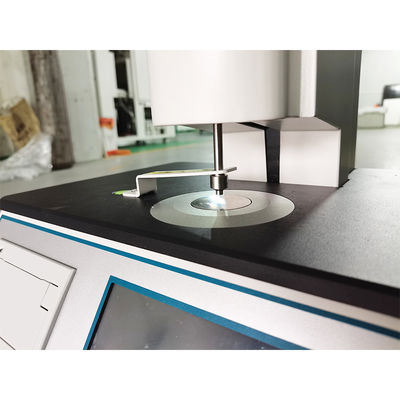

Product Images
LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode 0 LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode 1
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Our product range includes simulated environmental testers, plastic and rubber testers, and various material testing equipment. Based in Dongguan, China's manufacturing hub, we also maintain an office in Kunshan to better serve Eastern China.

LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode 2
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of testing equipment including environmental chambers, industrial ovens, tensile testers, and more. All machines come with 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video chat, typically responding with solutions within 24-48 hours.
2. What's the delivery term?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo.
4. How can I install and use the machine?
We provide English operation videos upon purchase. Most machines are shipped fully assembled - simply connect power to begin use. For complex installations, we can provide on-site assistance if necessary.
LY-8312 High Resolution (0.1um) Film Thickness Tester with Mechanical Contact Measurement and Automatic Measurement Mode 3
